Designing AI-Driven Interactive Charts with Claude

Introduction

You have data. You need a chart. And somewhere between "paste the numbers" and "production-ready visualization," most developers either burn an hour wrangling a charting library or settle for something that technically works but looks like it belongs in a 2012 spreadsheet.

Claude changed that equation. But here's what most guides miss: the quality of the chart you get is almost entirely determined by how you ask. Claude can produce a basic bar chart from a vague prompt, or it can produce a fully interactive, story-driven, embed-ready visualization from a precise one. The difference isn't the tool; it's the technique.

This article breaks down that technique, with real prompt patterns and the outputs they produce.

What Actually Happens When Claude Draws a Chart

When you ask Claude to visualize data, it doesn't return an image. It generates live, interactive chart code, typically using Recharts or Chart.js, and renders it inline in the conversation. You can hover over data points, see tooltips, watch animated entries. It's a real interactive component, not a screenshot.

This is distinct from Claude Artifacts, which are persistent side-panel apps you can build on and export. Inline charts are context-aware responses; they live in the conversation, react to follow-up prompts, and can be iterated on in real time. That iterability is what makes the prompting craft so valuable: you're not locked into one output. You refine.

The Anatomy of a Strong Chart Prompt

Most people send Claude one of the four elements it needs. Strong prompts include all four:

1. Data: Paste CSV, JSON, or a structured list directly. If you're exploring before you have real data, describe the shape and Claude will generate realistic approximations.

2. Chart type directive: Name the type (bar, line, donut, scatter) or explicitly ask Claude to choose. When you ask it to choose, tell it what you're optimizing for: comparing categories, showing trends over time, illustrating proportions.

3. Interactivity instructions: This is what separates a static image from something useful. Specify hover tooltips, click-to-filter behavior, animated entry, zoom, reference lines. Without this, Claude defaults to minimal interactivity.

4. Context and intent: Who is reading this? What decision does it support? What visual tone fits (dark dashboard, clean white report, high-contrast presentation)? Claude uses this to make dozens of micro-decisions about layout, color, labeling, and typography.

Here's the difference in practice. Both prompts use identical data:

Weak prompt:

Make a chart of these sales numbers: 45, 67, 34, 89, 72, 56, 91, 83

Strong prompt:

Here's Q1 pipeline data by sales rep: Alice: $45K, Bob: $67K, Carol: $34K, David: $89K, Emma: $72K, Frank: $56K, Grace: $91K, Henry: $83K. Create a horizontal bar chart ranked by deal size (highest at top). Color bars by performance tier: green for ≥$80K, yellow for $50K–$79K, red for below $50K. Add hover tooltips with the exact value and their rank. Title it "Q1 Pipeline by Rep: Performance Tiers".

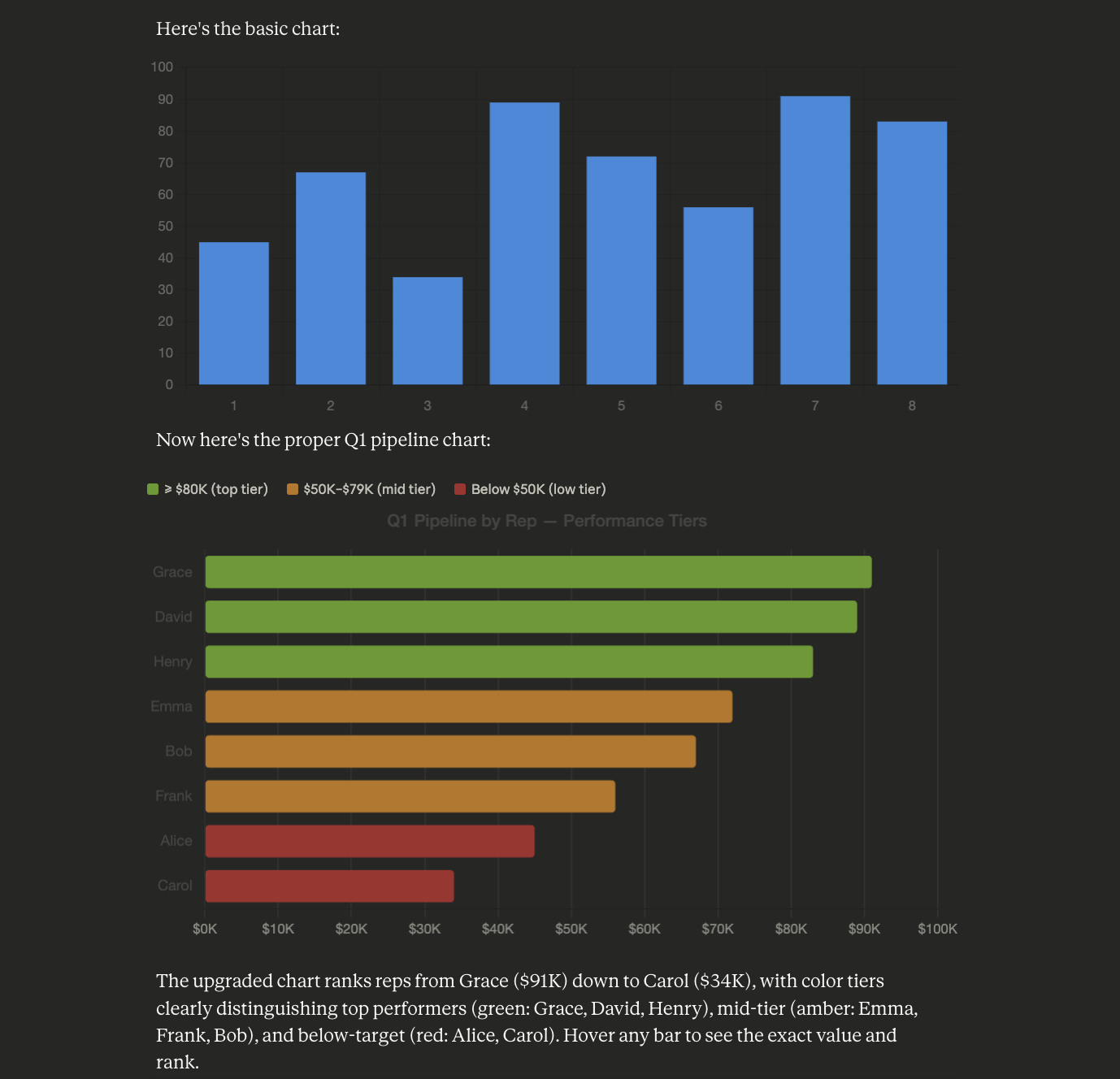

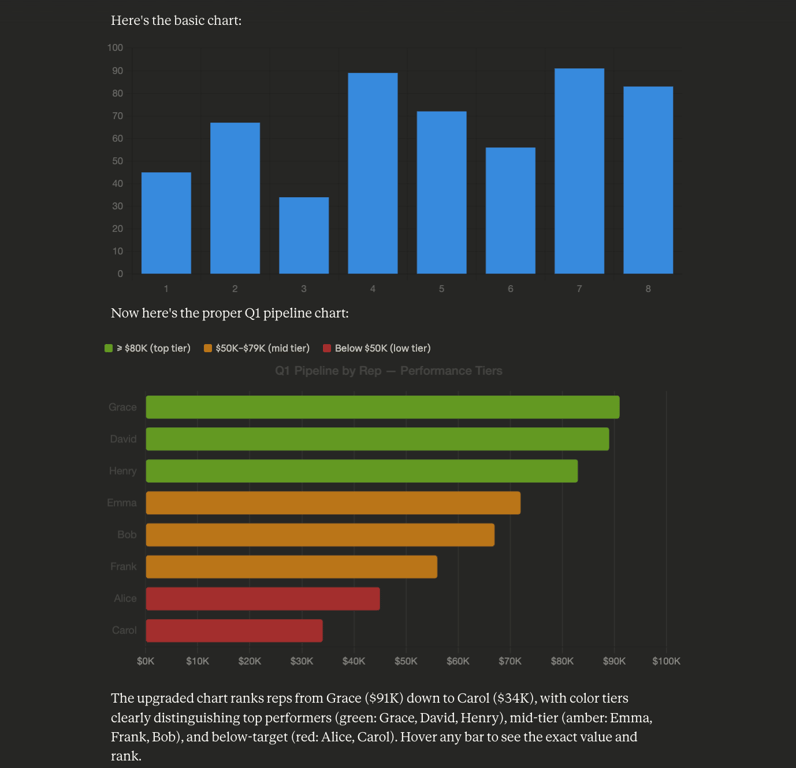

The weak version gives you an unlabeled bar chart with no context. The strong version gives you a ranked, color-tiered, interactive pipeline view, the kind of thing you'd actually put in a sales review.

5 Prompt Patterns That Work

Pattern 1: Data-First

Paste your data, specify the chart type and style, and let Claude handle the rest. Best for when you have clean, structured data and a clear chart type in mind.

Prompt:

Here's monthly revenue data for a SaaS product in 2024:
Jan: $12,400 / Feb: $14,200 / Mar: $13,800 / Apr: $16,500 / May: $18,900
Jun: $21,300 / Jul: $19,800 / Aug: $22,600 / Sep: $25,100 / Oct: $27,400
Nov: $31,200 / Dec: $34,800

Create an interactive bar chart. Add hover tooltips showing the exact value and
month-over-month growth percentage. Use a clean, minimal style with a blue color palette.

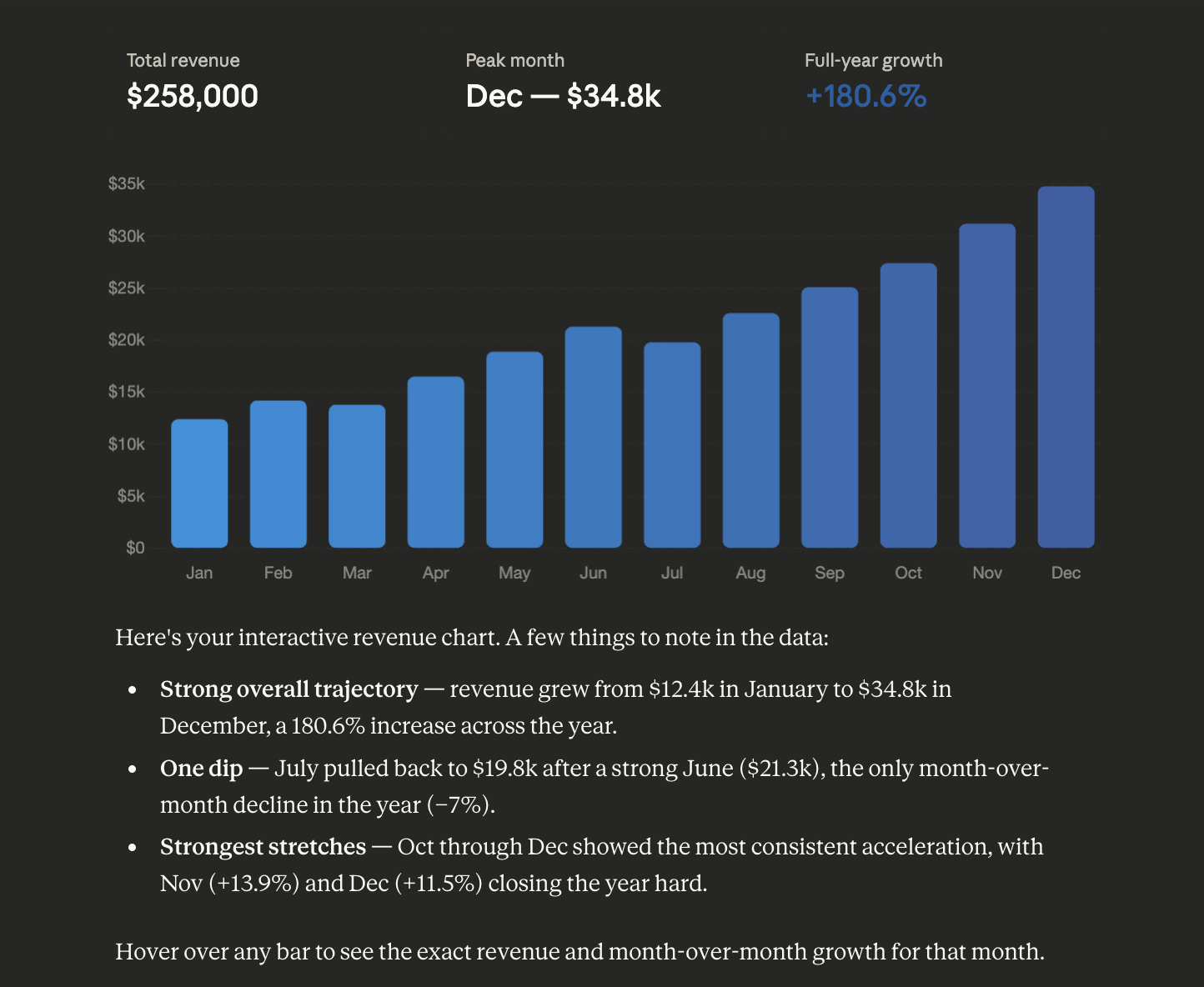

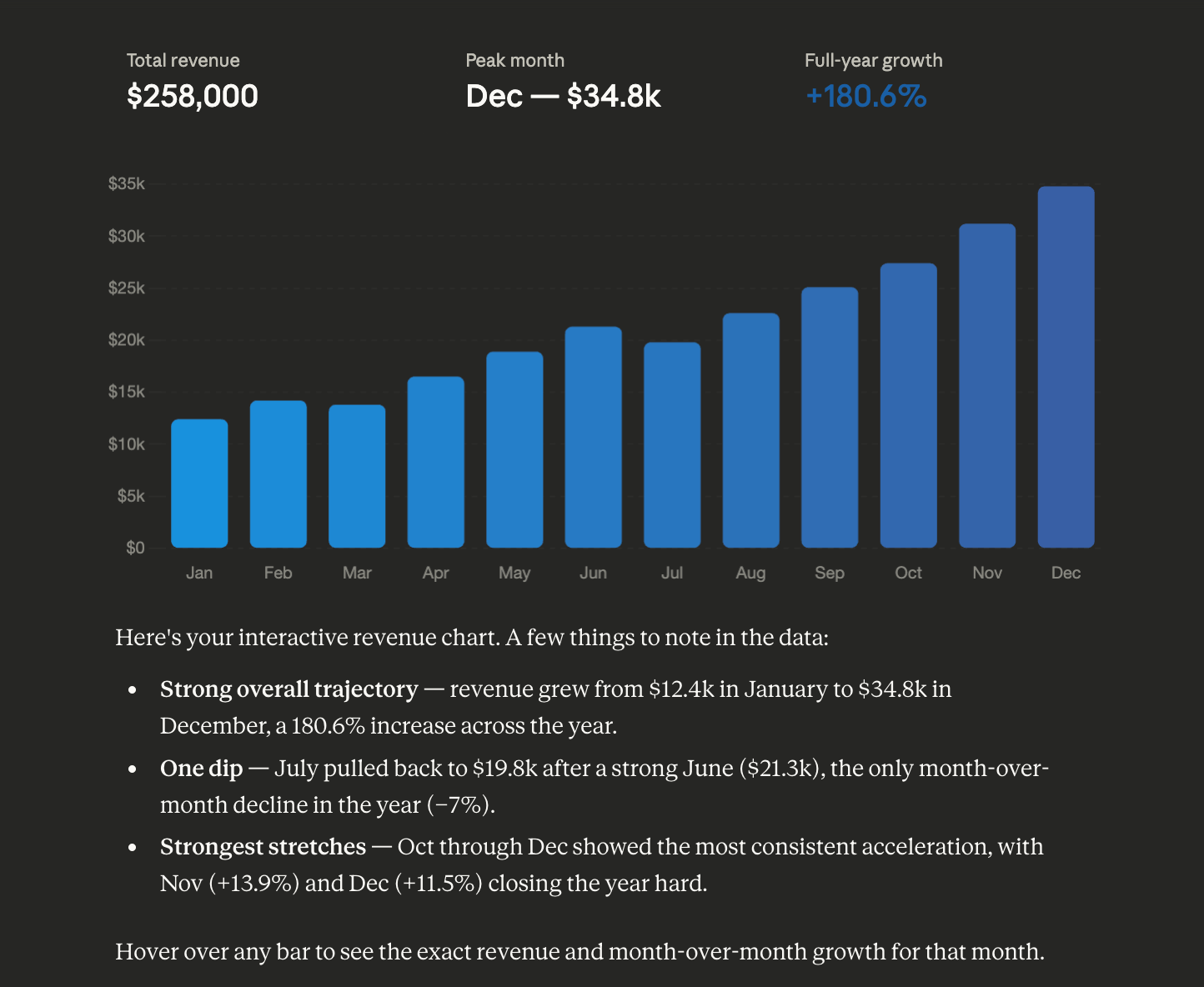

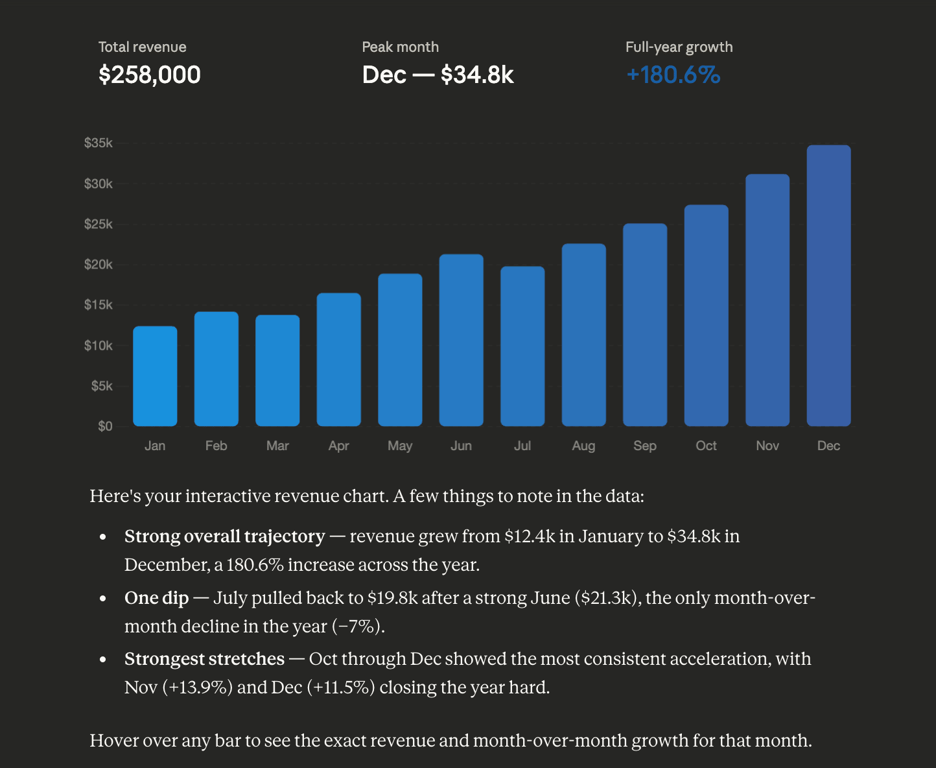

Notice what Claude added without being asked: the three summary stat cards at the top (total revenue, peak month, full-year growth). When you give context about what the data is, Claude infers what the reader needs to understand it.

Pattern 2: Iterative Refinement

Start with Pattern 1, then layer on complexity in follow-up prompts. The chart carries state; Claude knows what it built and can modify it precisely.

Follow-up prompt (same conversation):

Good. Now make three changes:
1. Add a trend line overlay showing the growth trajectory
2. Add an animated entry when the chart loads
3. Add a summary stat above the chart showing total annual revenue
   and average monthly growth rate

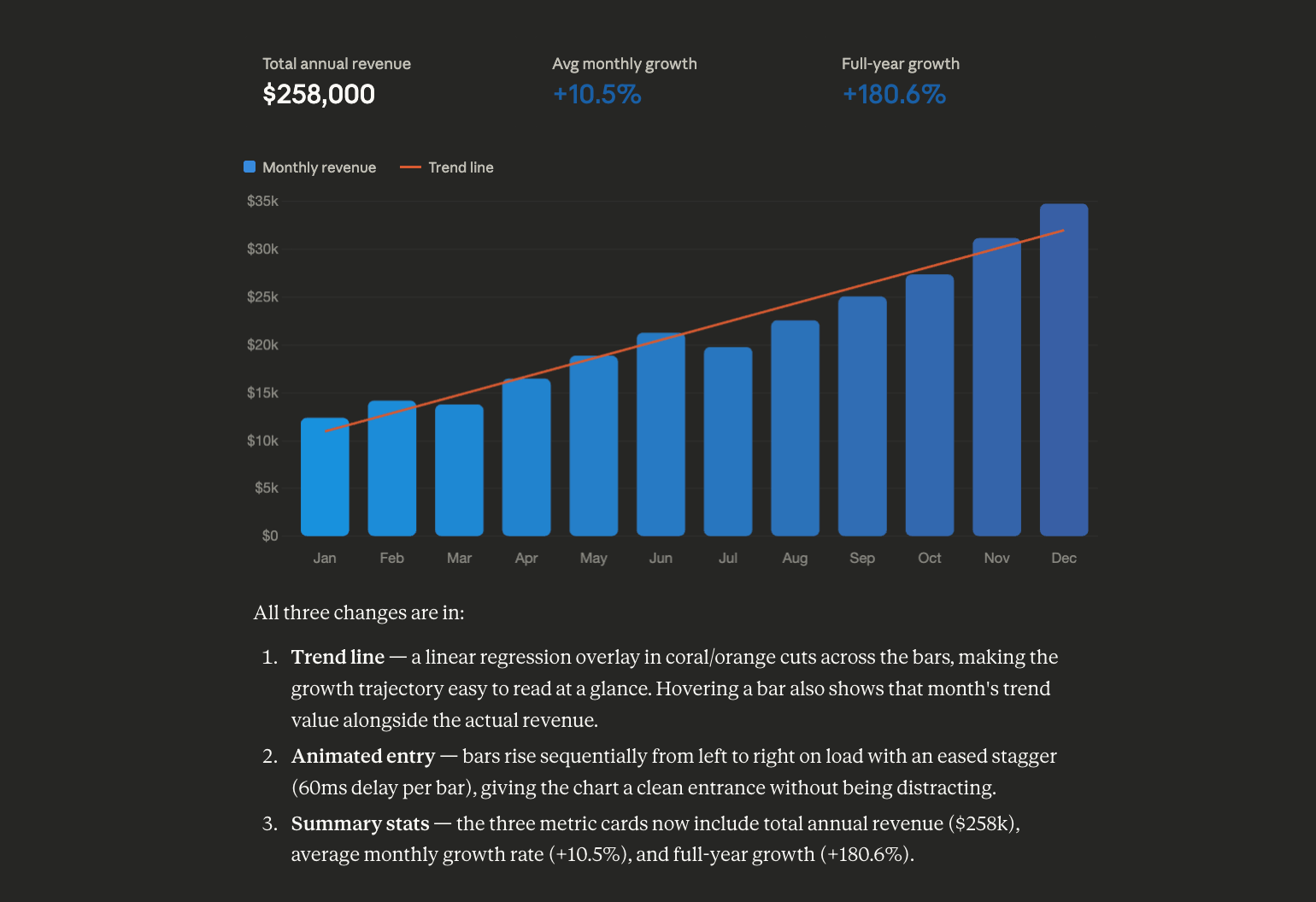

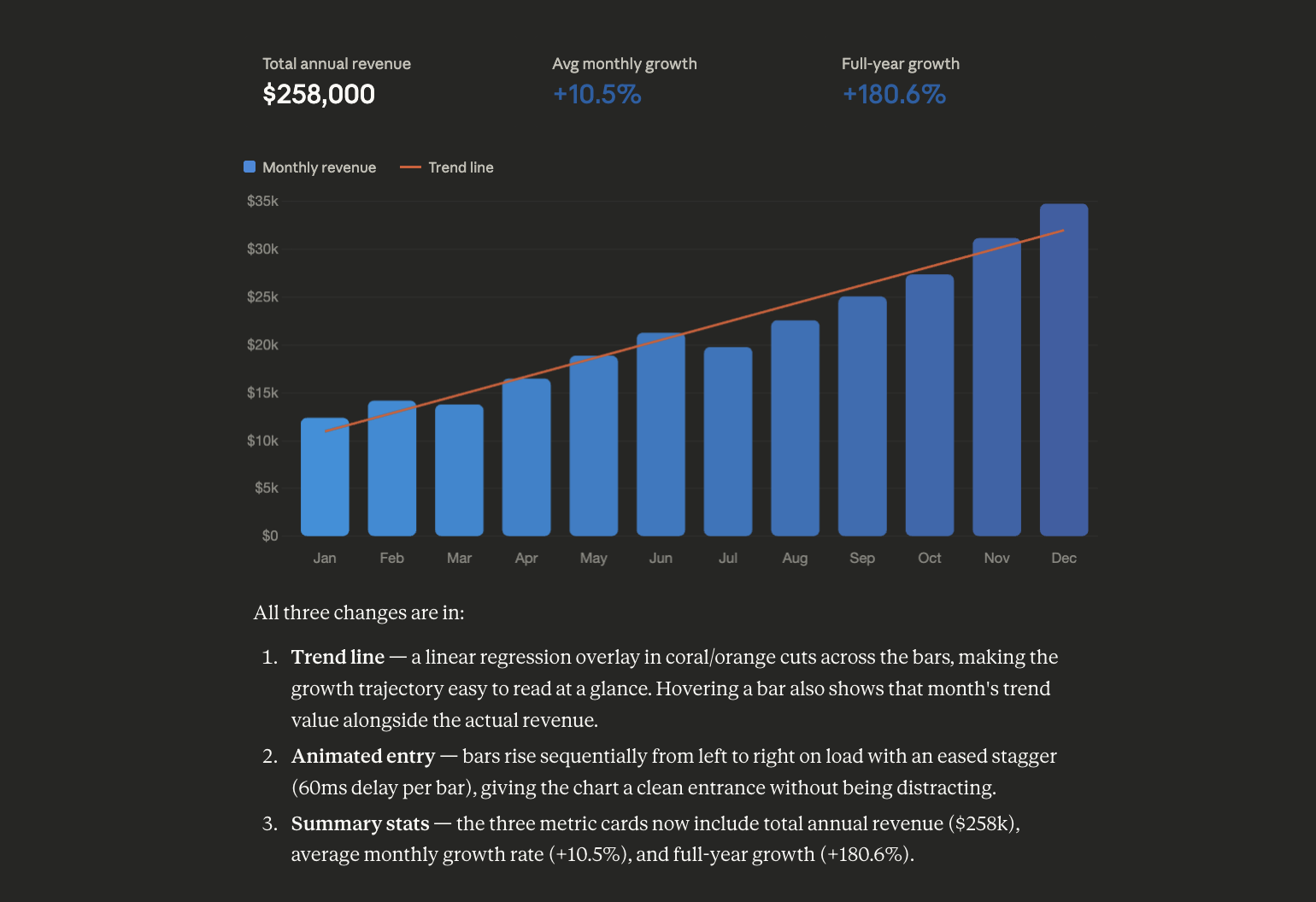

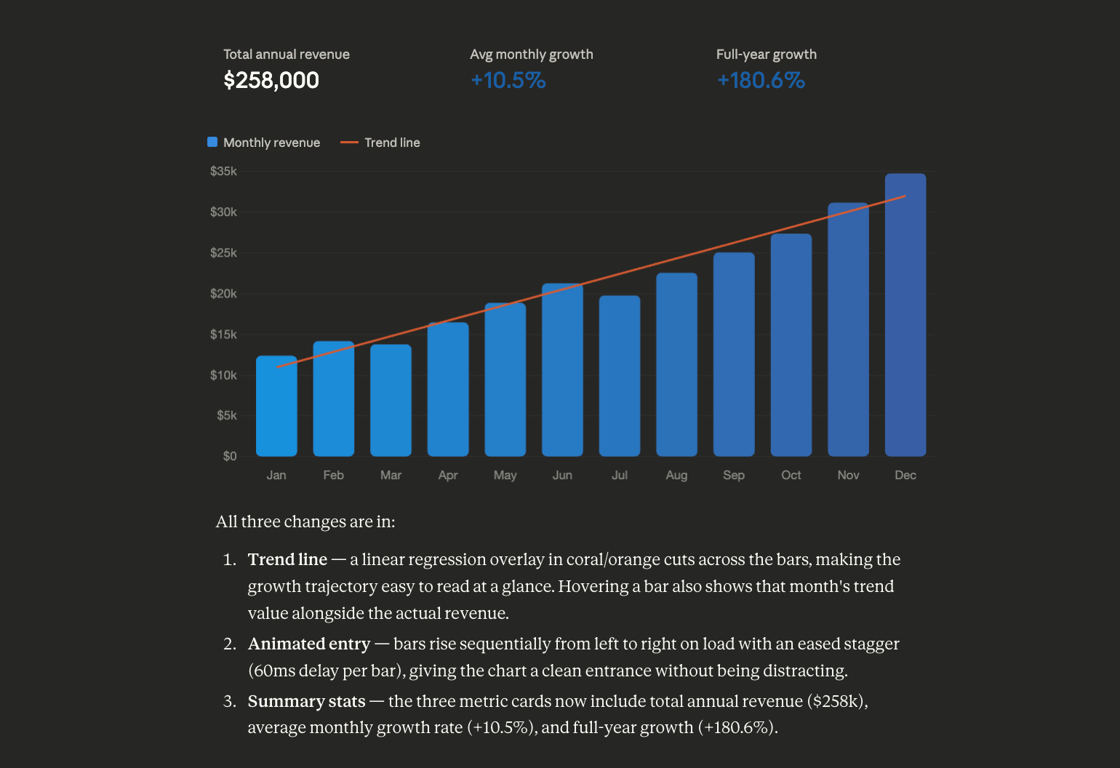

The coral trend line now cuts across the bars, making the growth trajectory immediately readable at a glance. Hovering a bar shows both the monthly revenue and the trend value at that point. The animated entry gives the chart a clean entrance without being distracting.

This pattern is how you actually work in practice; you don't need the perfect prompt upfront. Start broad, refine fast.

Pattern 3: Narrative-First

Instead of leading with data, lead with the story you want to tell. Give Claude the narrative arc and rough numbers, and it will construct a chart that makes that story visually obvious, including annotations, reference lines, and chart titles that reinforce the point.

Prompt:

I want to tell the story of how AI tool adoption grew across different developer
roles between 2022 and 2025. The story is: junior devs adopted early, senior devs
were skeptical until 2024, then crossed over. Data scientists led throughout.

Use approximate but realistic numbers. Create an interactive multi-line chart that
makes this crossover story visually obvious. Add hover tooltips, a legend, and a
short title that frames the story.

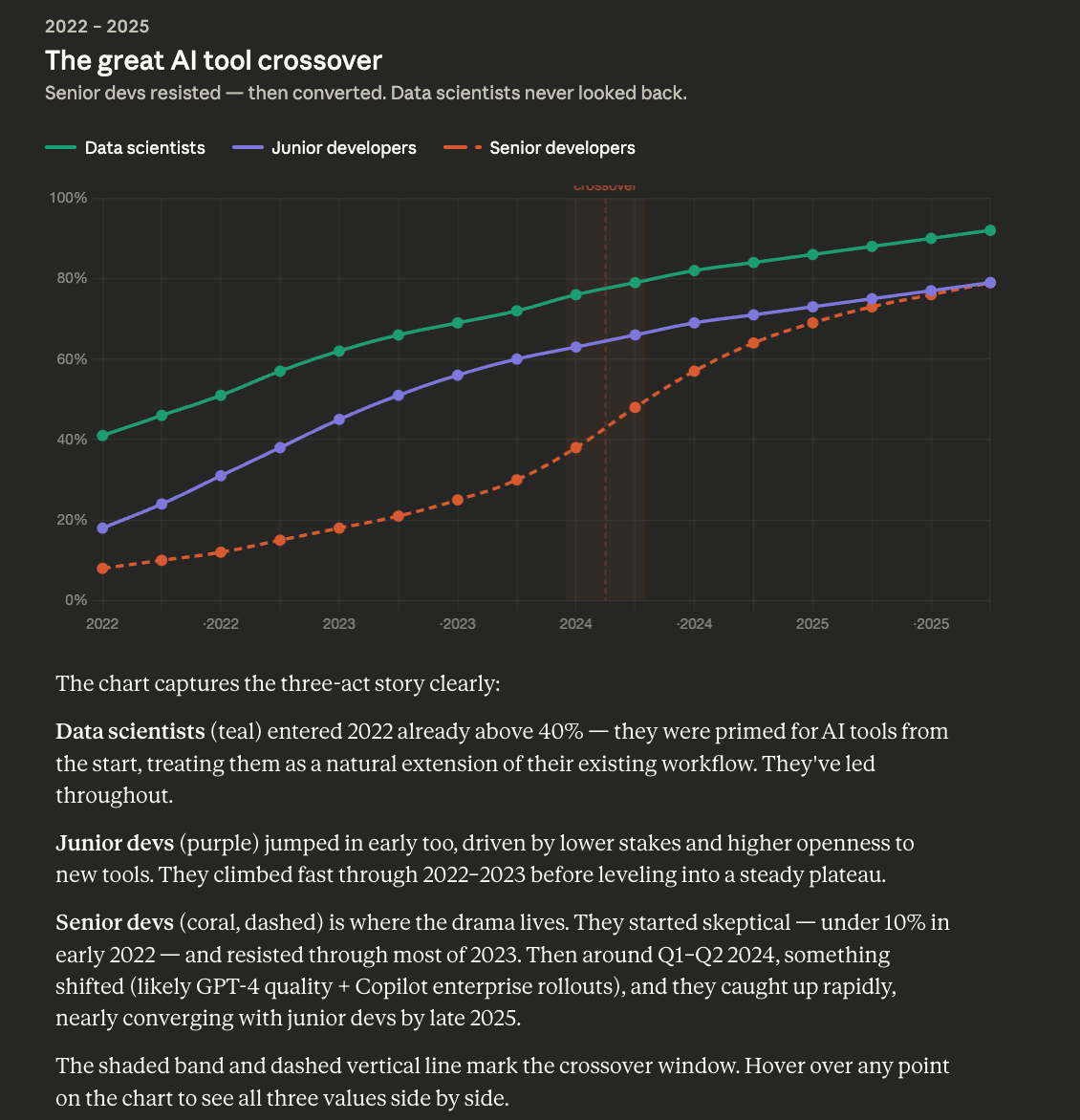

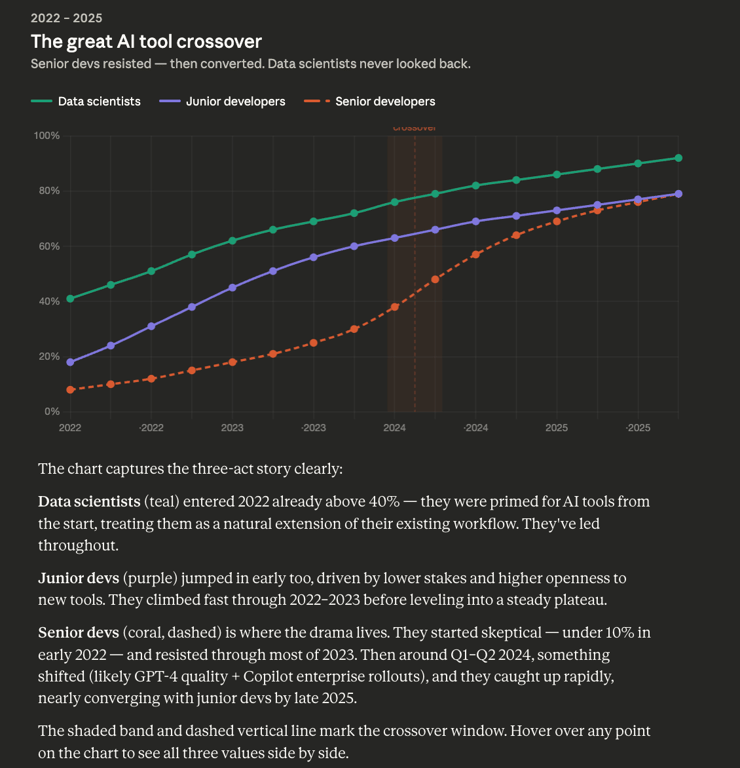

Claude titled it "The great AI tool crossover," added the subtitle "Senior devs resisted, then converted. Data scientists never looked back.", shaded the crossover window around Q1–Q2 2024, and used a dashed line for senior devs to visually distinguish their late-adopter trajectory. None of that was specified; it came from framing the prompt as a story rather than a data exercise.

Use this pattern for presentations, thought leadership pieces, or any time the argument matters more than the precision of the numbers.

Pattern 4: Dashboard Layout

When you need multiple related metrics in one view, ask for a multi-panel layout explicitly and describe each panel's job. Claude will coordinate styles, colors, and scales across panels automatically.

Prompt:

Build a mini analytics dashboard for a developer productivity tool. Use this data:

Weekly active users: [320, 345, 312, 389, 401, 378, 420, 455, 438, 471, 502, 489]
Feature usage breakdown: Code review 38%, PR summaries 27%, Bug detection 21%,
  Doc generation 14%
User satisfaction scores by month (1-10):
  [7.2, 7.4, 7.1, 7.8, 8.0, 7.9, 8.3, 8.5, 8.4, 8.7, 9.0, 8.9]

Create a 3-panel dashboard:
- Top left: line chart of weekly active users
- Top right: donut chart of feature usage
- Bottom: bar chart of satisfaction scores with a reference line at 8.0

All panels should be interactive with hover tooltips. Use a dark theme with accent colors.

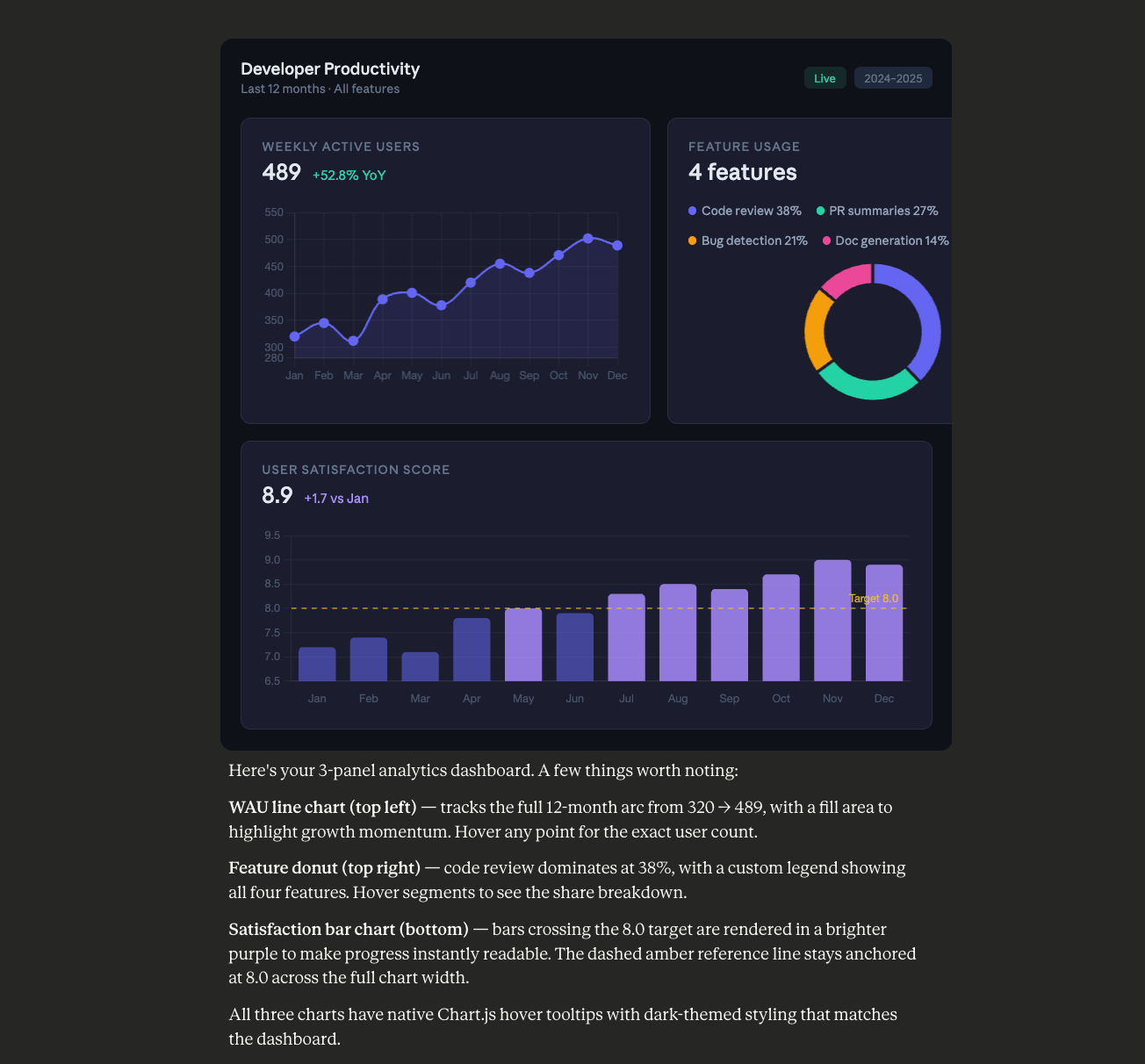

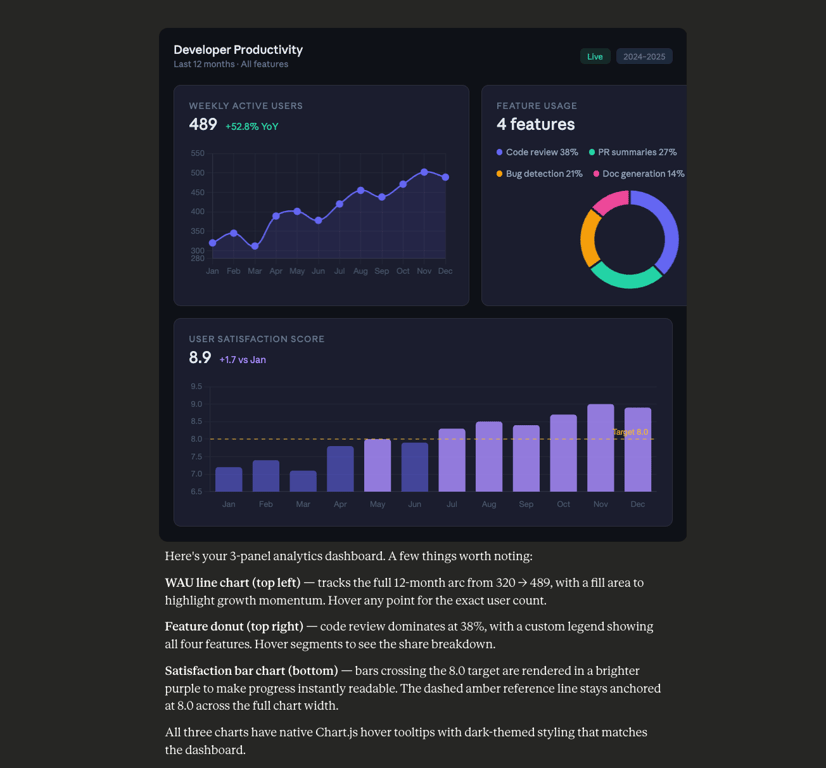

The dashboard comes back with consistent dark theming across all three panels, coordinated accent colors, and a dashed amber reference line at 8.0 on the satisfaction chart. Bars above 8.0 are rendered in a brighter purple. The donut has a custom legend. All three are independently hoverable.

This is the pattern for hackathon demos, product analytics views, and any situation where one chart isn't enough.

Pattern 5: Embed-Ready

When you're building a real application and need a chart you can drop directly into a React codebase, specify the library, the component interface, and the technical requirements explicitly. Claude will return a self-contained component rather than a conversational visualization.

Prompt:

Create a responsive interactive line chart using React and Recharts showing
6-month user retention cohorts. Use this data:

Month 1 retention: 100% (all cohorts)
Month 2: Cohort A 78%, Cohort B 72%, Cohort C 81%
Month 3: Cohort A 64%, Cohort B 58%, Cohort C 69%
Month 4: Cohort A 54%, Cohort B 47%, Cohort C 58%
Month 5: Cohort A 48%, Cohort B 41%, Cohort C 53%
Month 6: Cohort A 43%, Cohort B 37%, Cohort C 49%

Requirements:
- Recharts library
- Responsive container (fills parent width)
- Custom tooltip showing all three cohorts on hover
- Dotted reference line at 50% retention
- Clean white background, distinct colors per cohort
- Export as a self-contained React component

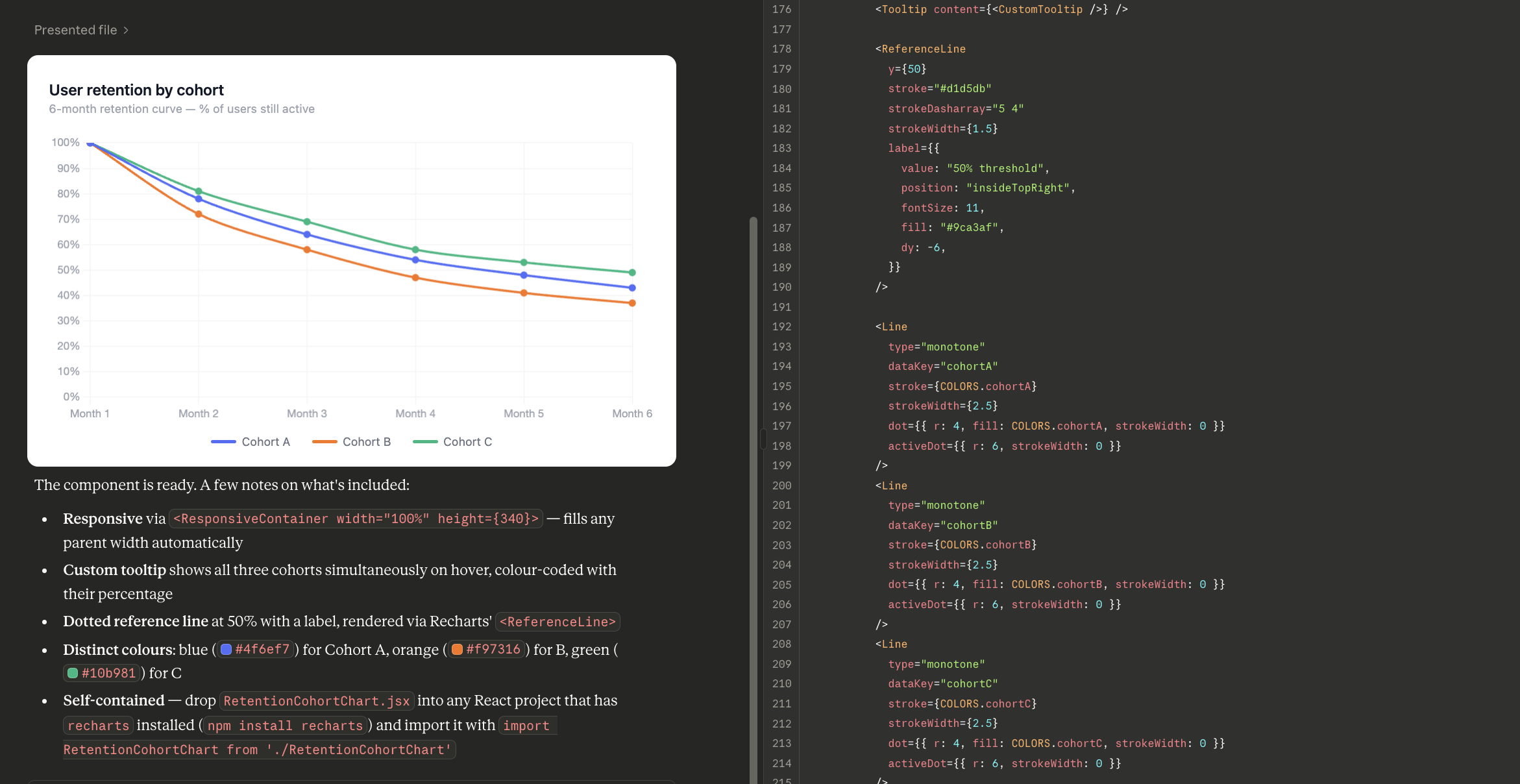

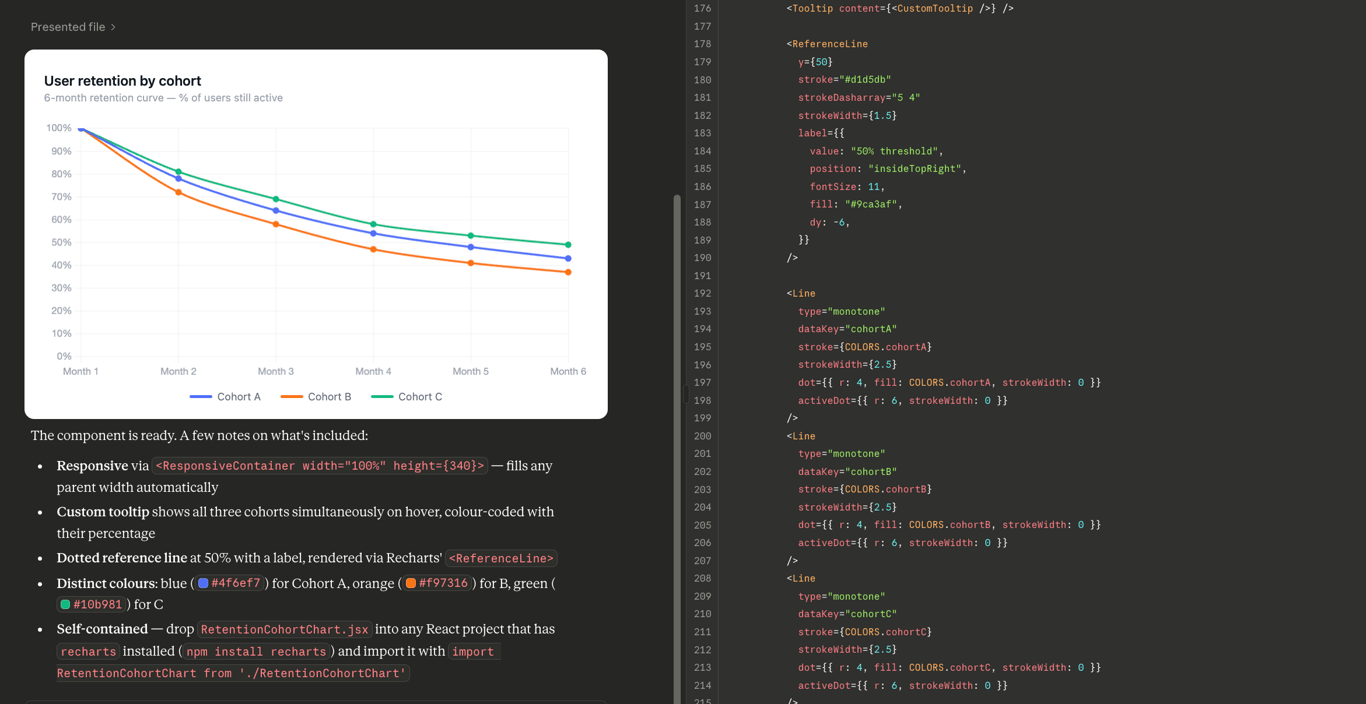

The output is a named React component (RetentionCohortChart) ready to drop into your project. It uses ResponsiveContainer to fill any parent width, renders a custom multi-cohort tooltip, and includes the 50% dotted reference line. Install Recharts, import the component, pass your data. Done.

Real Use Cases for Builders

Hackathon demos. A dashboard built with Pattern 4 in 10 minutes communicates product vision more effectively than a slide with bullet points. Judges who can interact with a live visualization understand your data story instantly.

Analytics dashboards. Wire Claude to your API response data: pass the JSON payload into a prompt, ask for the best visualization for that shape of data, and render the output in a webview or iframe. Claude handles chart type selection and layout decisions that would otherwise require a dedicated frontend engineer.

Reporting pipelines. If you're generating reports from structured data (usage stats, financial summaries, experiment results), Patterns 1 and 2 let you automate chart generation; the output is interactive HTML, not a static image, so recipients can explore the data themselves.

Data exploration for non-technical users. Pattern 3 is powerful for product managers or analysts who know what story they're looking for but don't want to write chart code. Natural language in, interactive visualization out.

Where Claude Shines, and Where You Should Steer

Claude makes good autonomous decisions on chart type selection, color palettes, layout hierarchy, and responsive behavior. For most use cases, you don't need to specify these; describe the data and the goal, and the defaults are good.

Where you'll want to provide more guidance:

• Large datasets (more than a few hundred rows): Claude will still generate code, but may sample or summarize. Specify explicitly how you want the data handled.
• Specific library requirements: If your codebase uses Plotly, Victory, or a custom charting setup, say so explicitly; Claude defaults to Recharts or Chart.js.
• Brand tokens: For production use, specify your exact hex values, font families, and spacing conventions. Claude's defaults are clean but generic.
• Accessibility: ARIA labels, keyboard navigation, and high-contrast modes need to be explicitly requested.

Summary

Claude's interactive chart generation is a genuine productivity lever for developers, but only when you prompt with intent. The four-element framework (data, chart type, interactivity, context) consistently produces outputs worth using. The five patterns cover the majority of real scenarios: from quick exploratory charts to production React components.

The fastest way in: take your most recent data export, paste it into Claude with a one-line context description, and add "Create an interactive chart. Add hover tooltips and choose the best chart type for this data." That's Pattern 1 at its minimum, and it will still produce something substantially better than a default library chart. From there, every follow-up takes seconds.

Explore the full Claude integration guide on Lablab and the Claude API documentation to start embedding chart generation into your own applications.
